BDX-30

Moisture Meter for Building Materials

$555.00

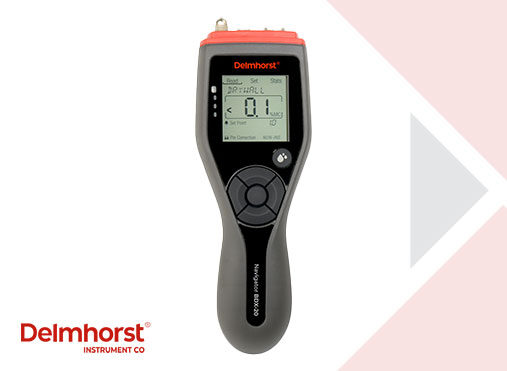

The powerful BDX-30 pin meter combines the design elements and functionality of the BDX-20 and introduces Bluetooth^® integration to the Navigator^® series with the Delmhorst EDGE ^® app. This exciting addition to the meter enhances your ability to ensure precise readings and export data from anywhere. With the EDGE ^® app, users can also select from 37 species and materials. The BDX-30 brings today’s technology from the field to the office, making the most challenging project easier, more efficient, and most accurate.

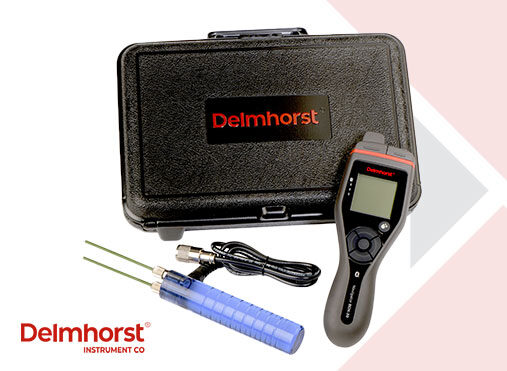

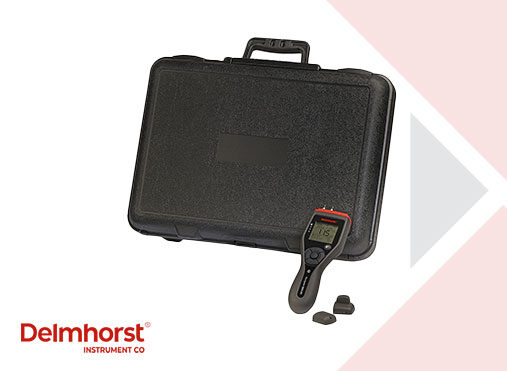

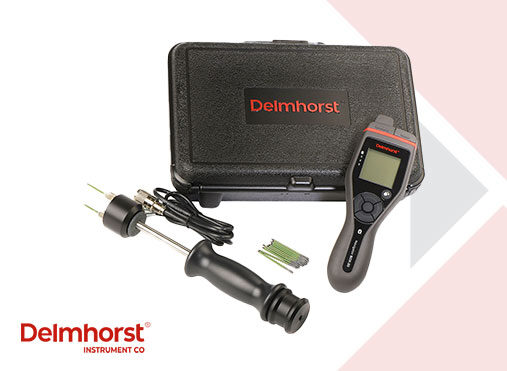

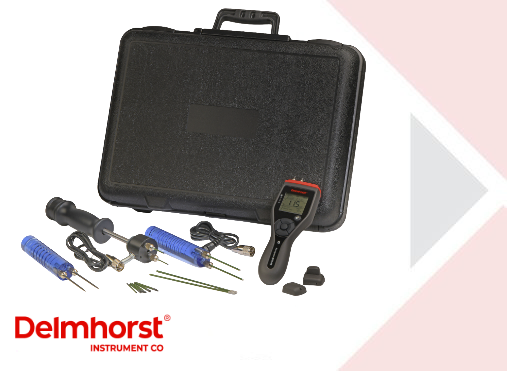

What is in the box?

BDX-30 Meter
324CAS-0111 Carrying Case

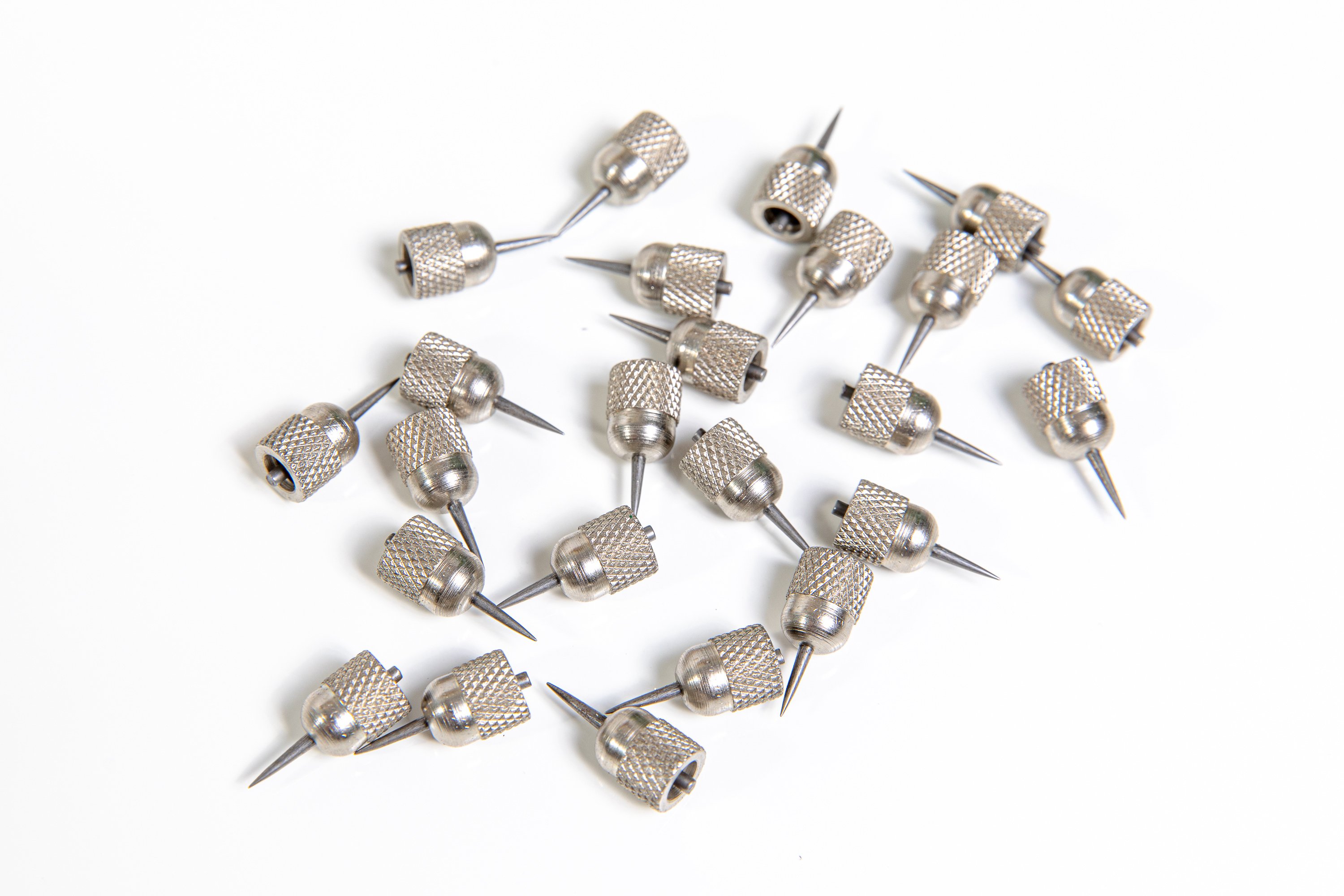

Spare 2498/A-100 Pins (2)
Pin and Connector Covers
QuickStart Guide

Have any questions? Get in Touch

Features

Large, custom display with auto backlight - easy to read under all conditions
Modern case design with large, tactile buttons and E-Z grip handle
On-screen statistics for up to 100 readings saved to the meter (High, Low, Average, Standard Deviation)
Measuring Range:
- Wood (Douglas Fir) 6%-60%
- Drywall 0.1%-6%
- Reference 1-100
Wood temperature correction (°F/°C)
Select from 37 wood species and building materials
Bluetooth^® connectivity to EDGE ^® app
Color-coded LED’s – adjustable through EDGE ^® app
Alarm set point - alerts to user-selected MC level

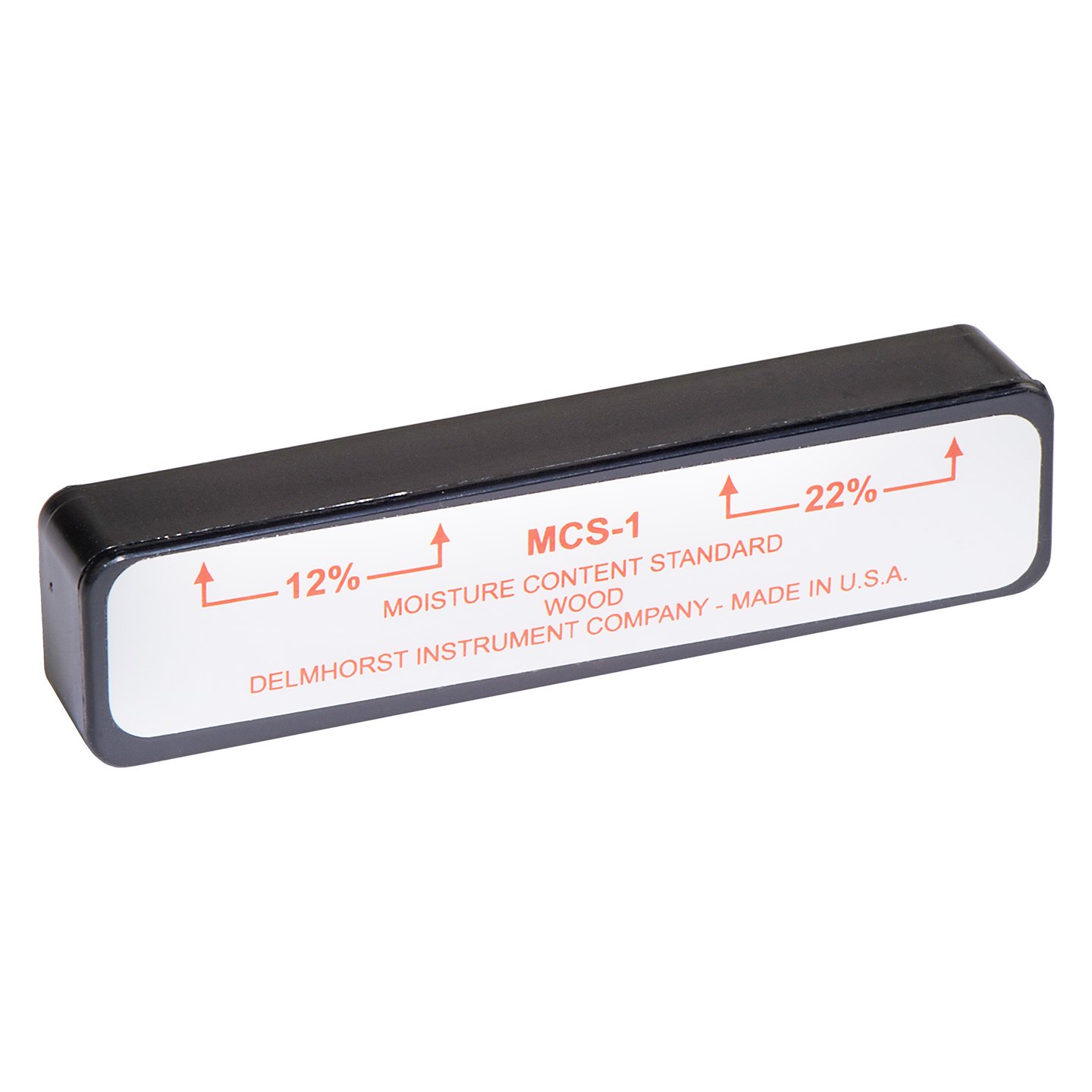

Internal calibration check
"Low Batt" warning with audio
Auto off timer. Set to 1m, 4m or 10m

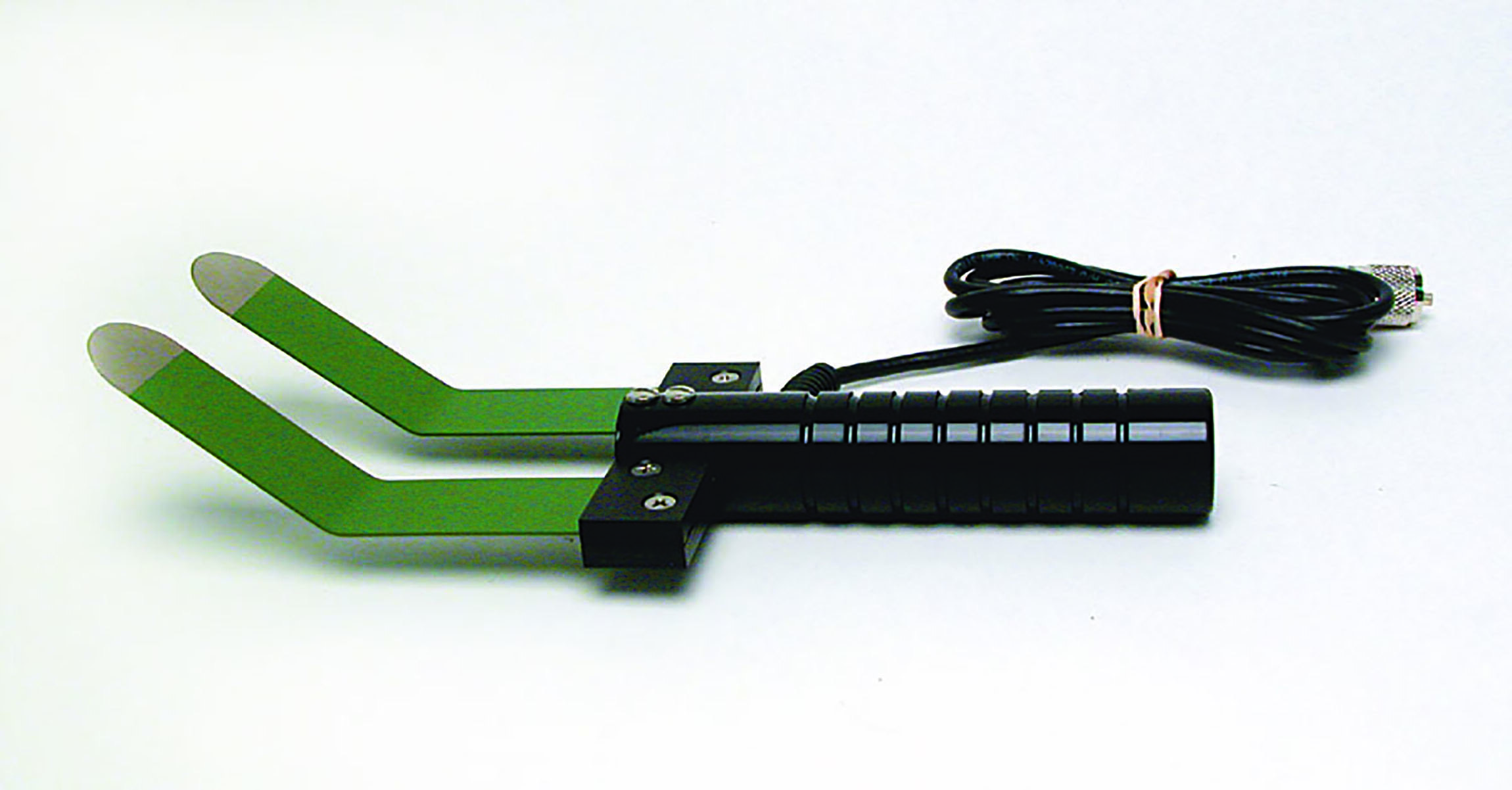

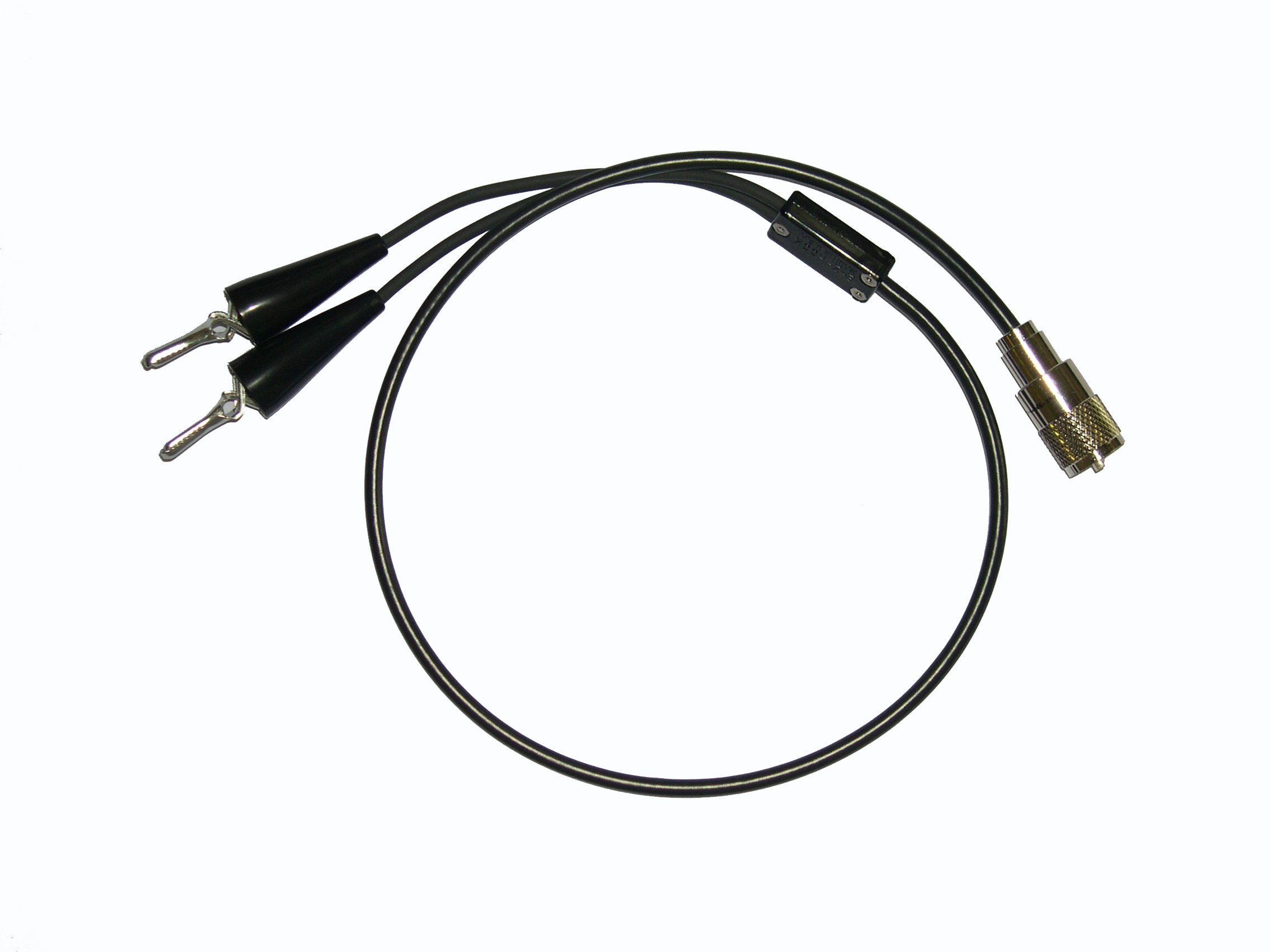

Compatible with all Delmhorst electrodes
Power: 2x AA Alkaline batteries
Temperature Correction Range: 0°-255°F (-18°-124°C)

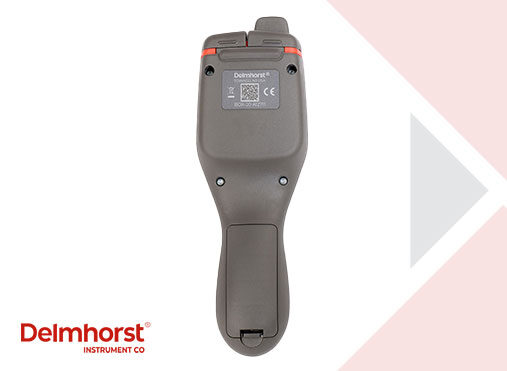

QR code on meter for easy access to support materials and meter registration
Size: meter only 8.65in x 2.85in x 1.60in (21.97cm x 7.24cm x 4.06cm)
Weight: meter only - 8.6oz (244gm)
Hard plastic carrying case included
2-year warranty on manufacturer’s defects. Bonus warranty with on-line registration
EDGE ^® app offers:
- Timestamp and geotag
- Data export to .csv format
- Save unlimited readings
- Customize LED ranges
