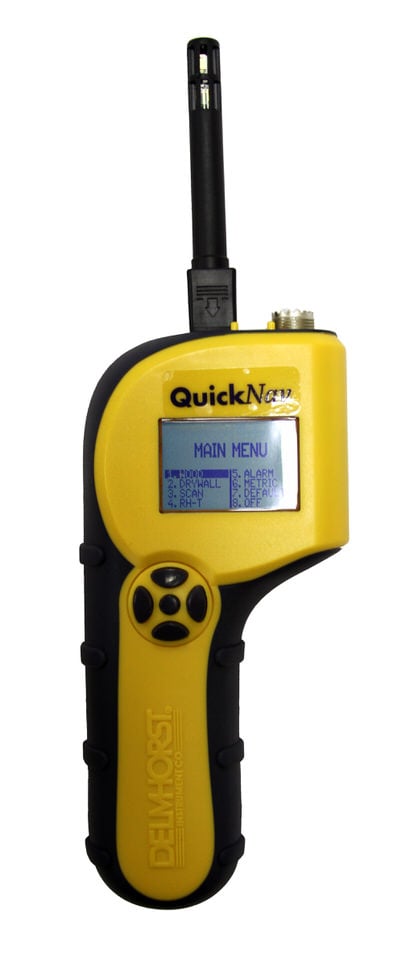

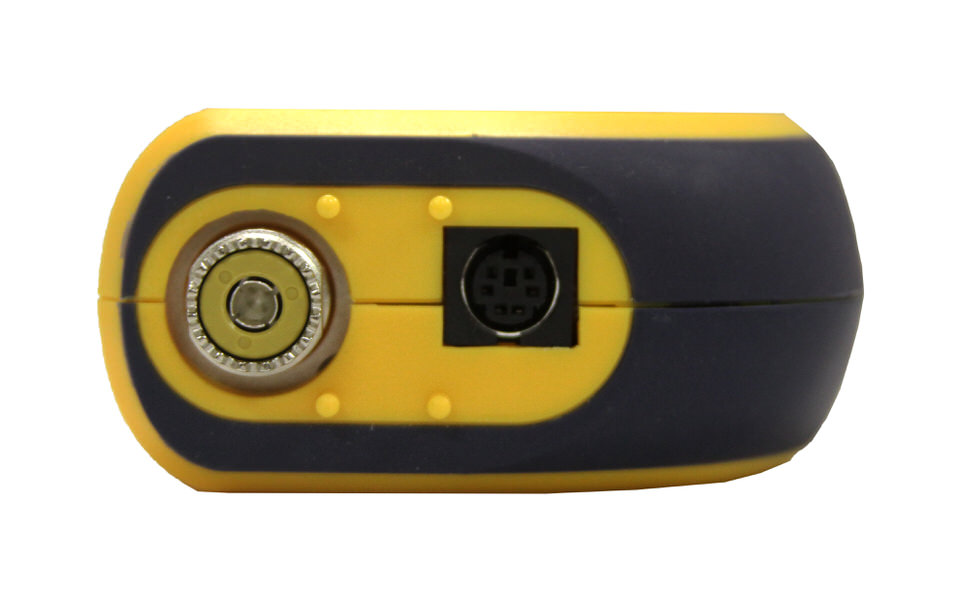

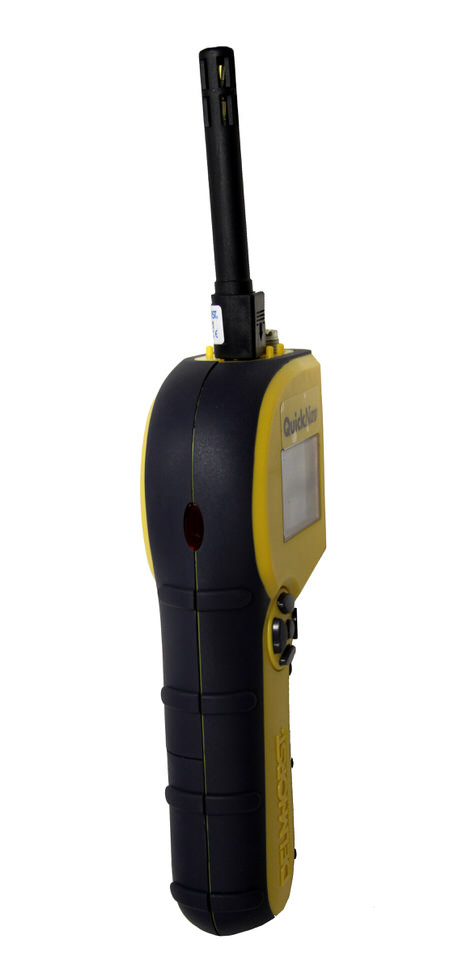

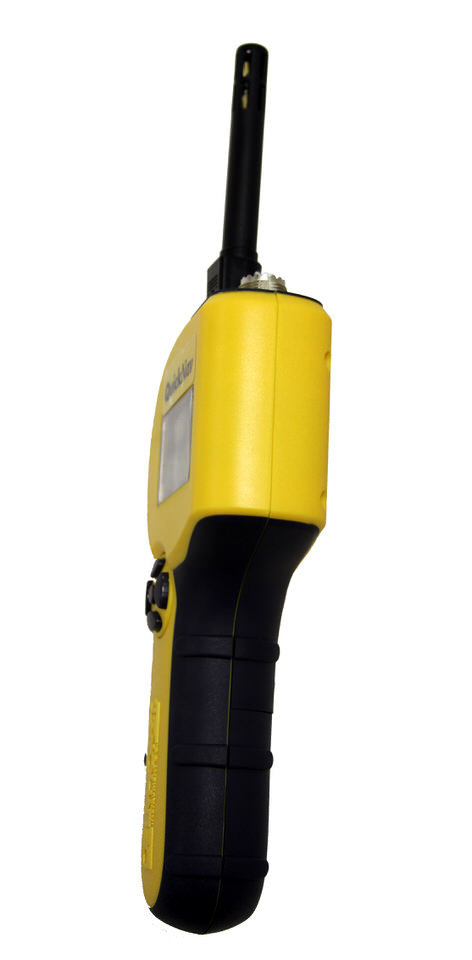

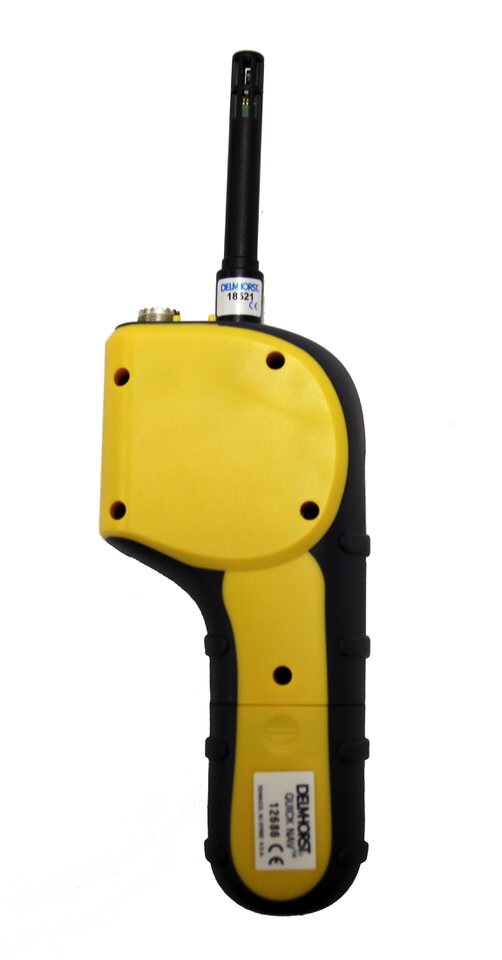

QuickNav

Product Features

Pin penetration depth of 5/16”
Scan depth of ¾”
Correction scales for wood and drywall
Moisture range of 6-60% on wood and 0.1-6% on drywall
Scan range of 0-300 numerical reference scale
RH/T Range of 0-100% RH
Measures temperature over the range of -40°F-255°F with accuracy of +/- 1.8°F over -4°F to 158F (range of -40°C - 124°C with accuracy of +/- 1°C over -20° to 70°C)
Dewpoint -40∘F - 176∘F
Calculates Vapor Pressure
Grains Per Pound (GPP) 0.1 – 3820 GPP (0.1 – 545GPK)
Backlit LCD screen
Hold feature that allows to hold the displayed reading when testing hard to reach areas
Adjustable alarm alerts you when preselected moisture level is reached, easily compare to established dry standard
Carrying Case
1 year warranty

QuickNav Package Variations:

Basic Package: QuickNav with RH Sensor, Carrying Case, 2-E Electrode.
Order as QUICKNAV/BP. (Price: $750.00)

Complete Package: QuickNav with RH Sensor, Carrying Case, 2-E Electrode,
26-ES Electrode, and 21-E Electrode. Order as QUICKNAV/CP. (Price: $925.00)

QuickNav Accessories:

RH/T-S1

Detachable relative humidity/temperature sensor that is included with Navigator Pro and HT-4000. Can be used to obtain ambient RH/T readings. Order individually or in packs of 5 as RH/T-S1/5.

QuickNav Electrodes:

Delmhorst offers a wide assortment of electrodes known throughout the industry for their durability. All Delmhorst electrodes fit any Delmhorst moisture meter. Below are electrodes that are typically used for this model:

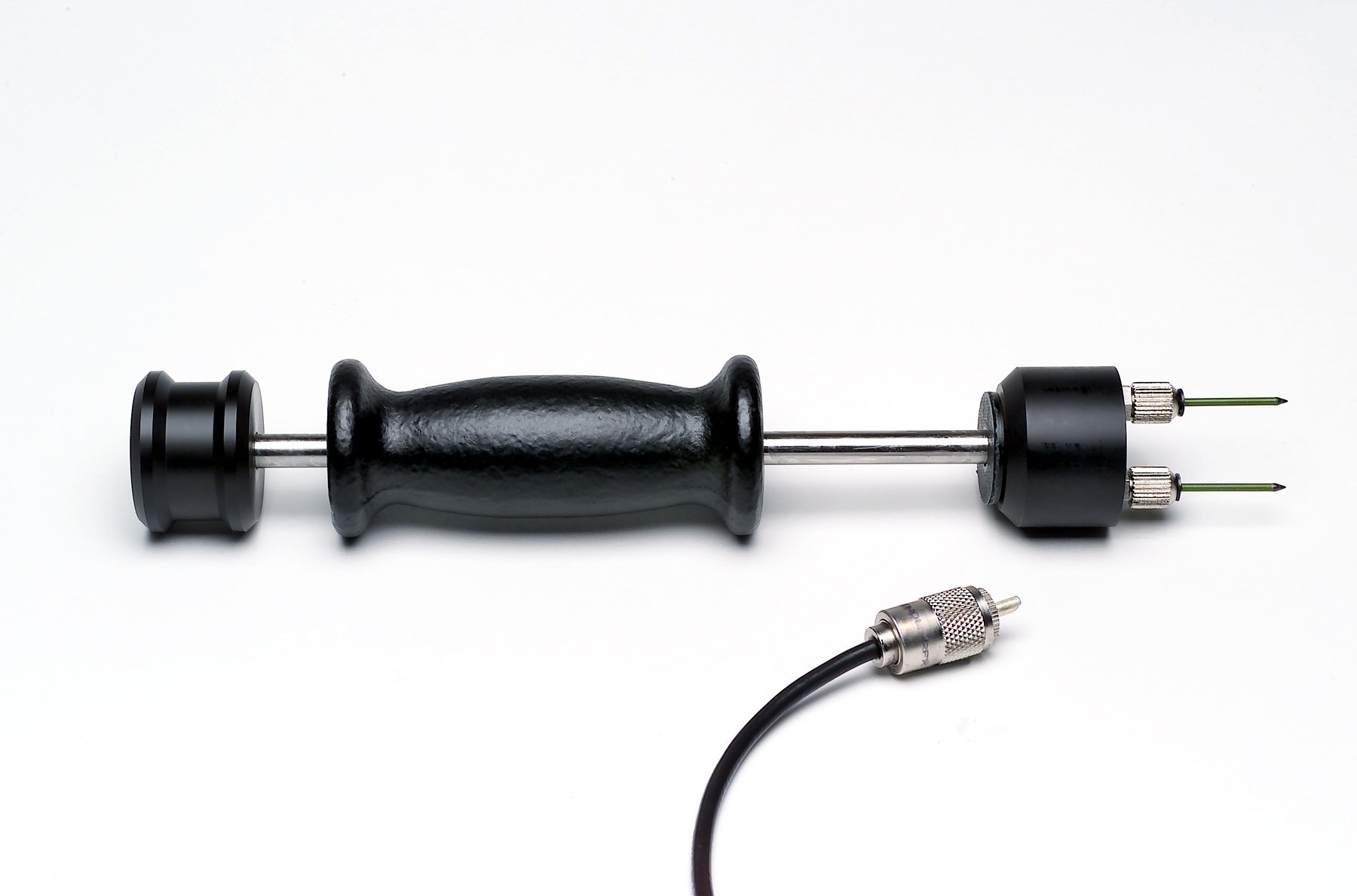

26-ES

The 496 contact pins that come with the 26-ES penetrate 1 1/8” and have insulated shanks so that only the tips are exposed. The pins make contact only at their uncoated tips and provide much more accurate readings of moisture content at various levels of penetration. This feature is useful for a variety of different applications:

Flooring installers: Penetrate through flooring to plywood sub-floor, or concrete.
Dry kiln operators: Identify moisture gradients which helps to identify the drying pattern.
Furniture manufacturers and craftsmen:Easily check high density hardwood that short pins are unable to penetrate.

Also available as the 26-ED, which includes gauge to measure pin penetration depth.

21-E

The 608 pins that come with the 21-E are insulated, except at the tips, and can reach a maximum penetration of 3-1/4".

Great for use on roofs, insulation, or EIFS.

21-E is also available as the 21-E/001 with 6" penetration, or as the 21-ET with a tapped handle for hard to reach areas.

22-E

Comes with A-111 uninsulated contact pins for 1 1/2" penetration. For use on plaster, masonry and wood. Will also accept 496, insulated pins; 1 1/16” penetration.

22-E is also available as the 22-ET with a tapped handle for hard to reach areas.

19-E/STC

Features two 5'' long blades, bent to a 35° angle, and coated in Teflon except for the tips. Great for checking behind trim and baseboard molding.

2-E/SPLIT

Makes moisture testing in hard to reach places a breeze. Simply attach any length metal “probe” to the alligator clips on the end of the 2-E/Split and test behind toe kicks, through drywall, or any other area where our standard length contacts pins aren’t long enough.

Manuals & Training

Owner's Manual

QuickNav MOISTURE METER Owner’s Manual Version 2.01 For Meters starting with Serial # 12545

Download Manual (pdf)

Whitepaper

Relative Humidity Sensor Behavior and Care

Download Whitepaper (pdf)

Online Learning

Interactive Training Course

Click here to start learning

Download the eBook, What is the key to Accuracy?

Moisture Meters 101 Guide

Finding the right kind of moisture detection equipment to meet your needs is a huge part of being able to anticipate how moisture conditions can affect your work.

Measuring Moisture in Restoration

Knowing the exact location and extent of moisture in a building is essential knowledge for restoration efforts. The full applications of moisture meters in restoration projects are described in this eGuide.

For more information, view our complete list of Moisture Meter Resources.
