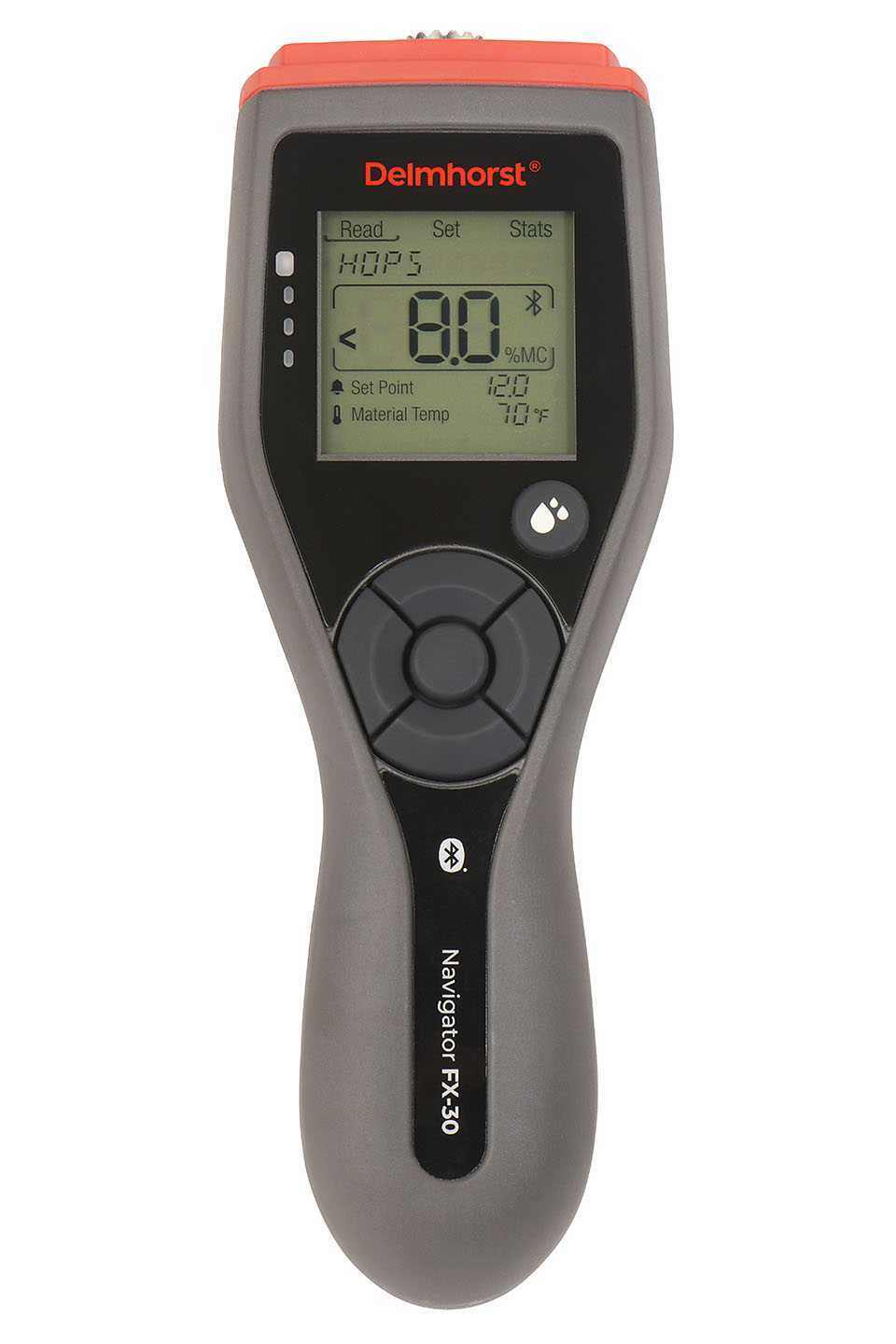

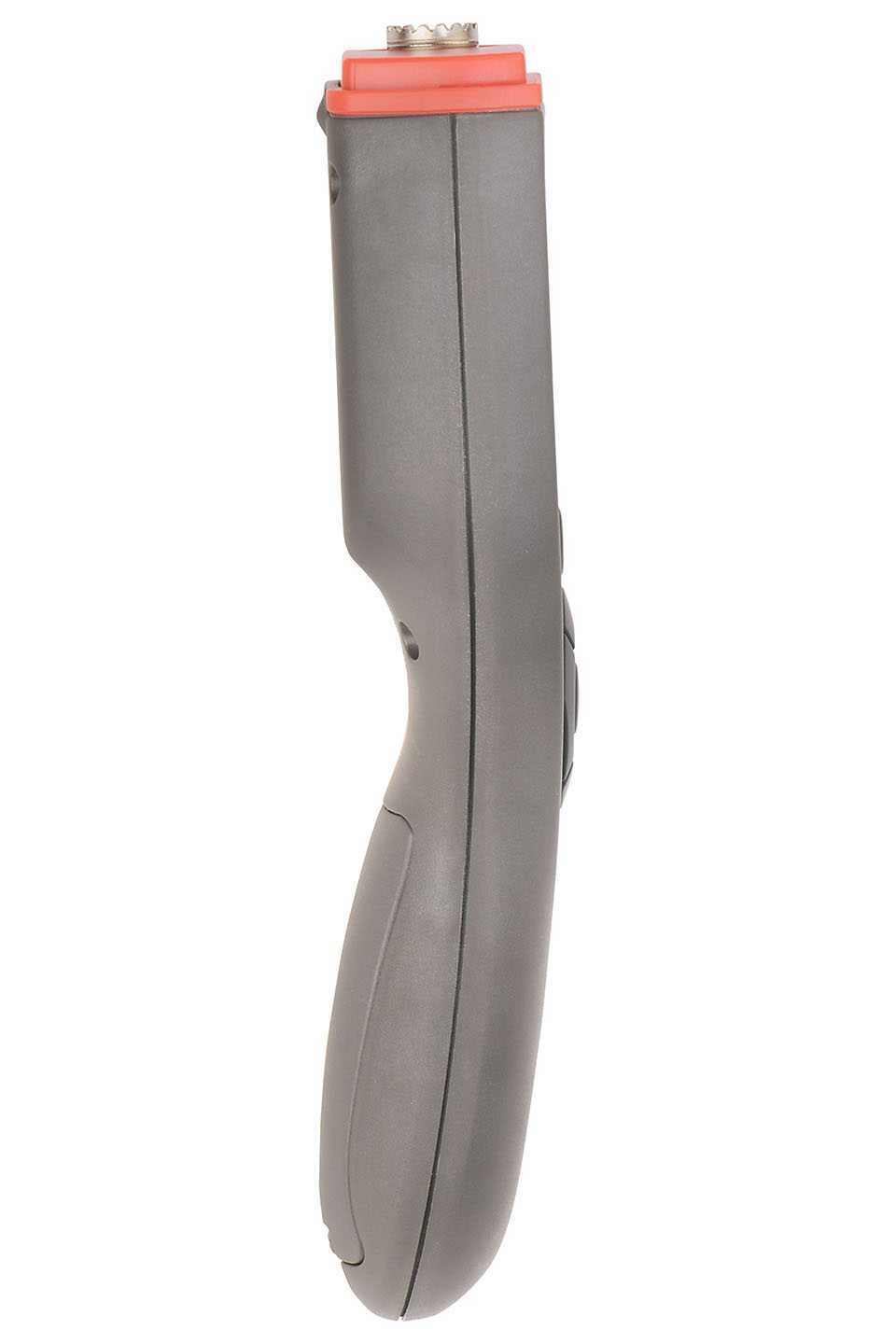

FX-30

Includes calibrations for Hay and five additional commodities available through the EDGE® app. Electrodes/prods ordered separately or available in meter packages.

Where to Buy

Product Features

  • Large, custom display with auto backlight – easy to read under all conditions
  • Modern case design with large, tactile buttons and E-Z grip handle
  • On-screen statistics for up to 100 readings saved to the meter
    • High, Low, Average, Standard Deviation
  • Moisture Range:
    • Hay - 6%-40%
    • Hops - 8%-23%
    • Hemp – 7%-34%
    • Tobacco – 8%-37%

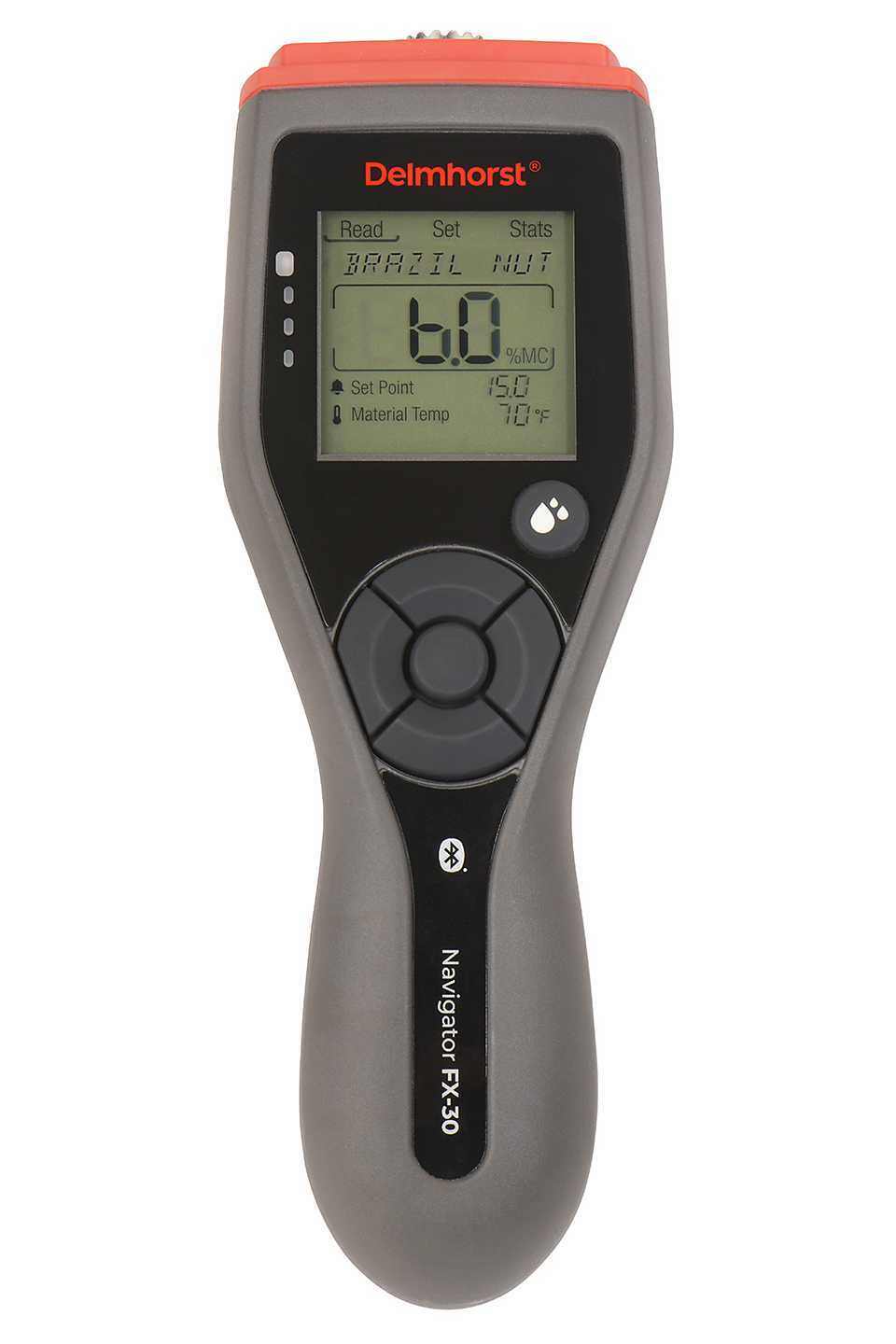

    • Brazil Nuts – 6%-25%
    • Dates – 6%-25%
  • Temperature correction (°F / °C )
  • Bluetooth® connectivity to EDGE® app
  • Color-coded LED’s – adjustable through EDGE® app
  • Alarm set point - alerts to user-selected MC level
  • Internal calibration check
  • “Low Batt” warning with audio
  • Auto off timer. Set to 1m, 4m or 10m
  • Compatible with existing Delmhorst prods and electrodes


Meter Specifications

  • Power: 2x AA Alkaline batteries
  • Temperature Correction Range: 0°-255°F (-18°-124°C)
  • QR code on meter for easy access to support materials and meter registration
  • Size: meter only - 8.03in x 2.85in x 1.60in (20.40cm x 7.24cm x 4.06cm)
  • Weight: meter only - 7.7oz (218gm)
  • Optional hard plastic carrying case
  • 2-year limited warranty on manufacture's defects. Bonus warranty with on-line registration

The Delmhorst EDGE® app

  • Timestamp and geotag
  • Data export to .csv format
  • Save unlimited readings
  • Customized LED ranges

he FX-30, purchased individually, includes the FX-30 meter only. Order as FX-30

The Value Package includes the FX-30 meter and 1235 10’ prod. Order as FX-30/1235

The Value 18” Package includes the FX-30 meter, and 1235/18 18” prod. Order as FX-30/1235/18

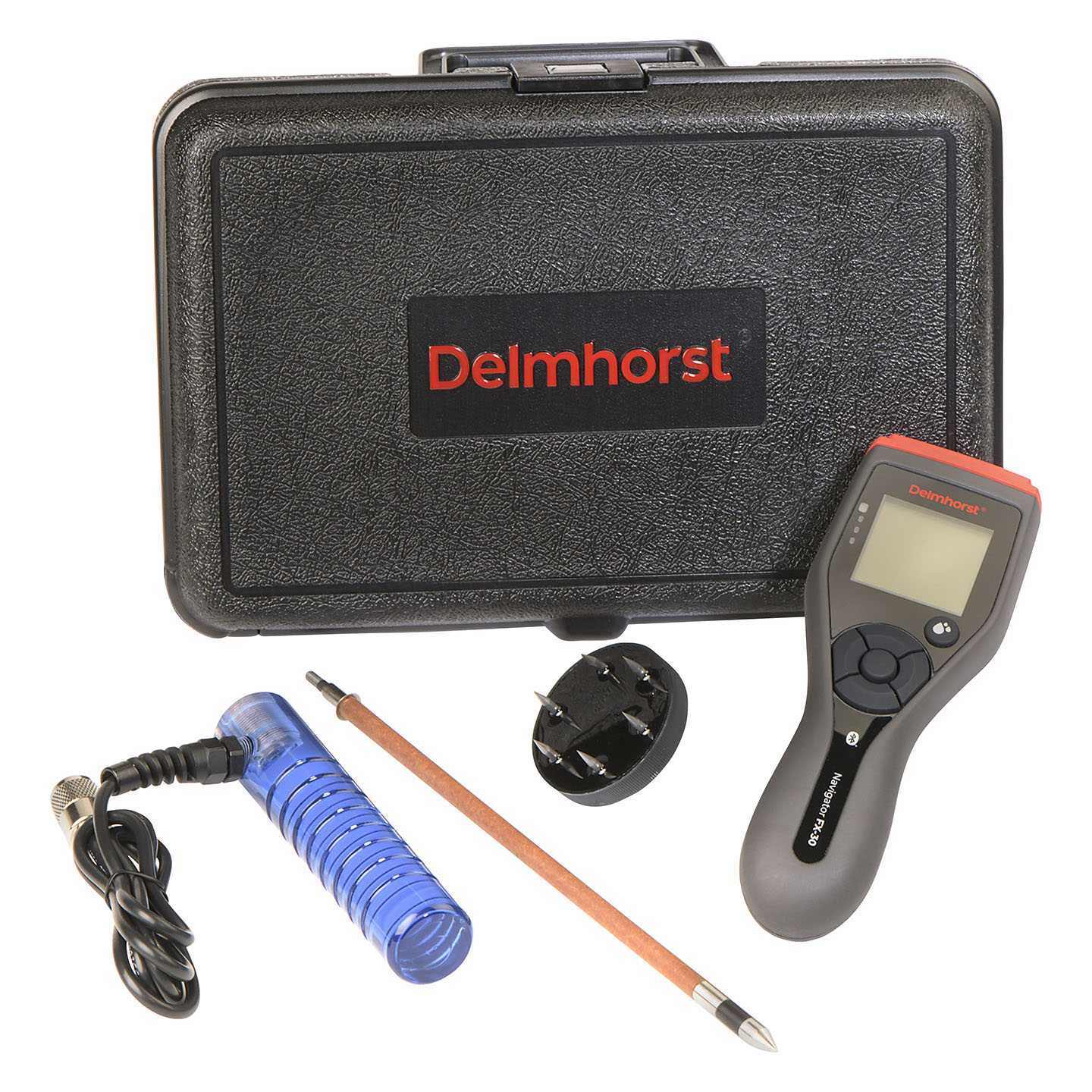

The Deluxe Package includes the FX-30 meter, 324CAS-0112 carrying case, H-4 handle, 830-2 10” prod, and 831 windrow probe. Order as FX-30/P01

The Deluxe 18” Package includes the FX-30 meter, 324CAS-0112 carrying case, H-4 handle, 830-3 18” prod, and 831 windrow probe. Order as FX-30/P02

The Hops Package includes the FX-30 meter, 324CAS-0112, H-4 handle, and 830-5 12” prod. Order as FX-30/P04






FX-30 Accessories:


324CAS-0065 Carrying Case

This carrying case may be purchased as a part of one of our deluxe moisture meter packages, and fits all prods except the 1986 bale sensor, 830-3 prod, and 830-4 prod. Can also be purchased separately.

(Price: $30.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.


MCS-5

This moisture content standard is great for verifying that your F-series hay moisture meter is in calibration. With two electrical resistance values (10% and 20%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy. The MCS-5 is also available with a letter of certification traceable to NIST.

(Price: $45.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.

FX-30 Electrodes:

Delmhorst offers a wide assortment of electrodes known throughout the industry for their durability. All Delmhorst electrodes fit any Delmhorst moisture meter. Below are electrodes that are typically used for this model:


1235

10” prod used for testing standard bales. Attaches directly to the connector on top of the meter. Also available in 18” length as 1235/18.

Available as:

  • 1235 - 10" Prod W/ Connector (Price: $72.00)
  • 1235/18 - 18" Prod W/ Connector (Price: $88.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.


830 Series

Prods for testing standard and high density bales (requires H-4 Handle).

Available as:

  • 830-2 – 10” prod (Price: $67.00)
  • 830-3 – 18” prod (Price: $73.00)
  • 830-4 – 36” prod (Price: $90.00)
  • 830-5 – 12” for hops (Price: $82.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.


831 Short Pin Prod

For testing hay in the windrow (requires H-4 Handle).

(Price: $47.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.


H-4 Handle

Electrode handle that attaches to the built-in connector on the top of any moisture meter. Can be used with the 830 series prods, 831 short pin disc shaped prod, and 832 long pin disc shaped prod. This is useful for large or high density bales of hay or scrap paper. Two handed operation is recommended over using a prod that connects directly to the top of the meter (like our 1235 series) to minimize stress placed on the meter casing.

(Price: $80.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.

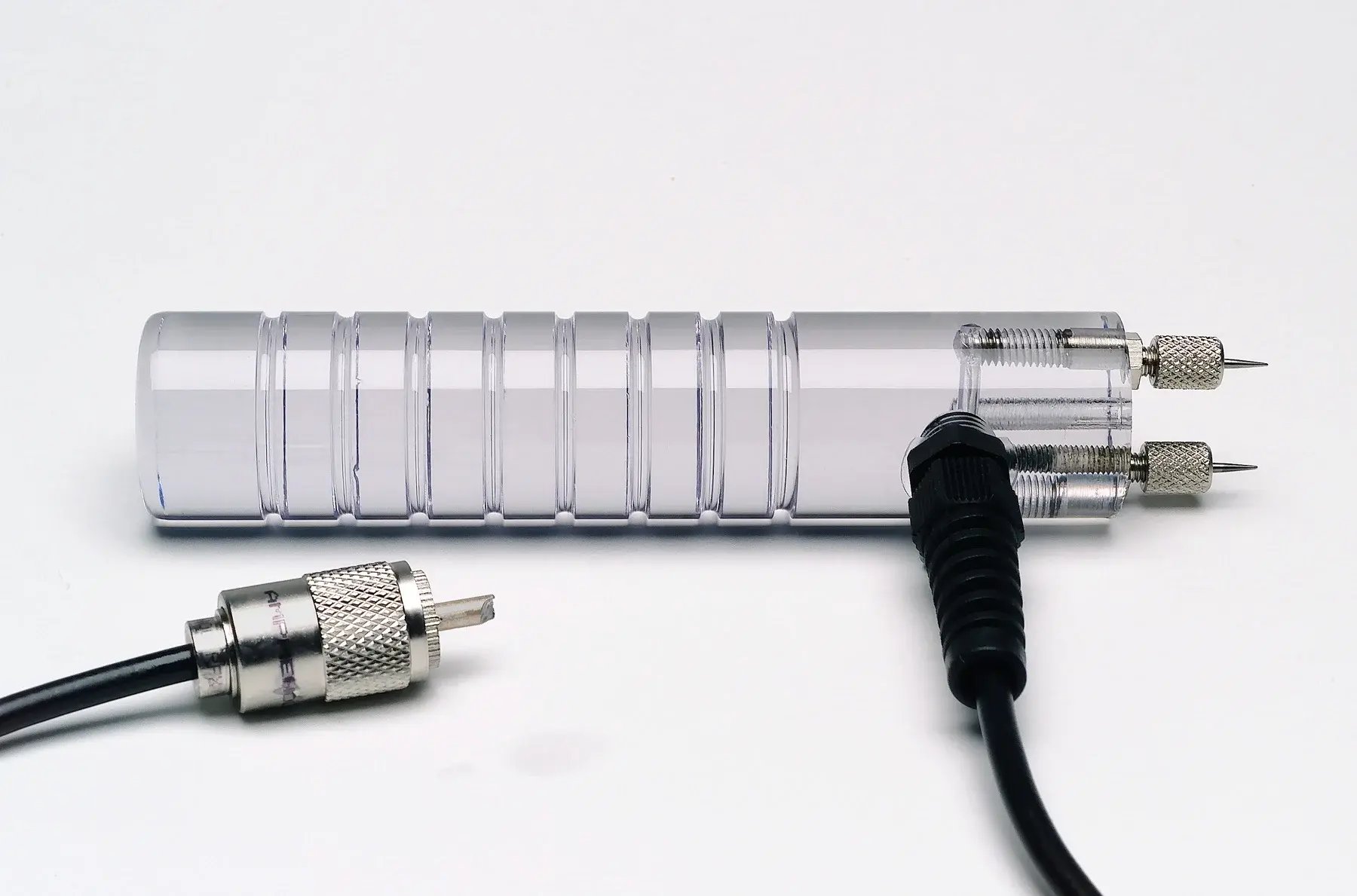

2-E

2-E

Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications:

  • Home inspector: Use on wood joists and drywall.
  • Paper producer: Use on curved surfaces such as cardboard and paper tubes.
  • Woodworker: Use on timber, poles, and veneer.

2-E is also available as the 2- ET with a tapped handle for hard to reach areas. Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration.

(Price: $90.00)

*ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE.

Manuals & Training

Owner's Manual

Product Manual

Download Manual (pdf)

DOWNLOAD THE GUIDE

Moisture Meters 101 Guide

Finding the right kind of moisture detection equipment to meet your needs is a huge part of being able to anticipate how moisture conditions can affect your work.

DOWNLOAD THE eGUIDE

Download the eBook, How to Improve Hay Quality

How to Improve Hay Quality

Hay is a very important crop for the farming industry. Farmers with livestock rely on top-quality hay to provide forage for their grazing animals when other grazing plants are scarce.

DOWNLOAD THE eGUIDE



For more information, view our complete list of Moisture Meter Resources.
