Electrodes

Delmhorst offers a wide assortment of electrodes known throughout the industry for their durability. All Delmhorst electrodes fit any Delmhorst moisture meter.

12-E

Double roller type for measuring moisture content on a moving web.

(Price: $365.00)


1235

10” prod used for testing standard bales. Attaches directly to the connector on top of the meter. Also available in 18” length as 1235/18.

(Price: $60.00; $75.00)


15-E

Pin type, with two rows of four pins each, maximum penetration 1/8". Penetration can be adjusted according to stock thickness by means of gauge block. Used for veneer.

(Price: $115.00)


18-ES

Similar to 26-ES, the 18-ES has a 17" steel shaft. Comes with 608 insulated pins for 3 1/4" penetration. Ideal for timber, poles, and ties. (Price: $140.00)

Also offered - 18-ED - with depth gauge to measure pin penetration. (Price: $155.00)


19-E

Blade type electrode for measuring of paper on skids. Blades are 5" long. Longer blades available on special order.

(Price: $180.00)


19-E/STC

Features two 5'' long blades, bent to a 35° angle, and coated in Teflon except for the tips. Great for checking behind trim and baseboard molding.

(Price: $195.00)



1900

The 1900 is the standard upper electrode assembly for the G-7 grain moisture meter. The 1900 has a serrated face, and is used with 313CUP-0005 sample cup.

(Price: $)


1986 Bale Sensor

For continuous monitoring during baling. Comes with 30’ cable to run from the sensor mounted in the bale chamber to the meter in the cab. May be used with any model, but is recommended to use with Model FX-2000. (Price: $120.00)

Also available as 1986/40 with 40’ cable for larger balers. (Price: $120.00)


2-E

Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications:

  • Home inspector: Use on wood joists and drywall.

  • Paper producer: Use on curved surfaces such as cardboard and paper tubes.

  • Woodworker: Use on timber, poles, and veneer.

2-E is also available as the 2- ET with a tapped handle for hard to reach areas. Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration.

(Price: $75.00; $85.00)


2-E/SPLIT

Makes moisture testing in hard to reach places a breeze. Simply attach any length metal “probe” to the alligator clips on the end of the 2-E/Split and test behind toe kicks, through drywall, or any other area where our standard length contacts pins aren’t long enough.

(Price: $105.00)


2-E/H

The 2-E/H is a compact electrode great for long-term monitoring of wood, drywall, and paper cores. This electrode connects directly to the MTX and comes equipped standard with 5/16” pins and a 10’ cable.

(Price: $85.00)


21-E

The 608 pins that come with the 21-E are insulated, except at the tips, and can reach a maximum penetration of 3-1/4".

Great for use on roofs, insulation, or EIFS.

21-E is also available as the 21-E/001 with 6" penetration, or as the 21-ET with a tapped handle for hard to reach areas.

(Price: $95.00; $105.00)


2110

Split bale chamber sensor for use with Freeman balers.

(Price: $120.00)


22-E

Comes with A-111 uninsulated contact pins for 7/16" penetration. For use on plaster, masonry and wood. Will also accept 496, insulated pins; 1 1/16” penetration.

22-E is also available as the 22-ET with a tapped handle for hard to reach areas.

(Price: $80.00; $90.00)


26-ES

The 496 contact pins that come with the 26-ES penetrate 1 1/8” and have insulated shanks so that only the tips are exposed. The pins make contact only at their uncoated tips and provide much more accurate readings of moisture content at various levels of penetration. This feature is useful for a variety of different applications:

  • Flooring installers: Penetrate through flooring to plywood sub-floor, or concrete.

  • Dry kiln operators: Identify moisture gradients which helps to identify the drying pattern.

  • Furniture manufacturers and craftsmen:Easily check high density hardwood that short pins are unable to penetrate.

Also available as the 26-ED, which includes gauge to measure pin penetration depth.

(Price: $130.00; $140.00)


30-E/C

Used for bales, 9 1/2" insulated pins, with 8 1/4" penetration, eliminates the effect of surface moisture.

(Price: $95.00)


313CUP-0005 Sample Cup

The 313CUP-0005 is a replacement sample cup for G-7 grain moisture meter. Used with 1900 upper electrode assembly.

(Price: $50.00)


313CUP-0006 Sample Cup

The 313CUP-0006 is a replacement sample cup with smooth surface for checking flour using the G-7 grain moisture meter. Used with 315ELE-0024 upper electrode assembly.

(Price: $60.00)


315CAB-0020

The 315CAB-0020, when used with optional contact pins, is a great solution for long-term monitoring of wood. This cable connects directly to the MTX using the terminal connection on the MTX.

With pins that are insulated except at the tip, you can obtain core readings which provide a true indication of moisture content at a known depth.

*The 3015CAB-0020 is available in 10', 15', 20', 25', 30', 50', 75', and 100' lengths. Please specify required length based on your application.

**Pins show are part # 309PIN-0042, and are available with 1/2" penetration for up to 5/4" stock, 1" penetration for up to 10/4" stock, and 1-3/4" penetration for up to 5" stock.


315ELE-0024

The 315ELE-0024 is similar to the 1900 except with a smooth surface for testing flour or granular material. Used with 313CUP-0006 sample cup.

(Price: $80.00)


37-E/C

Used for yarn, 1 1/2" pins with 1" penetration.

(Price: $105.00)


4-E

Comes with 4 uninsulated 2497/A-100 contact pins for 5/16" penetration. Useful for:

  • Dry-kiln operators: Use on kiln-dried boards up to 2" and on air-dried boards up to 5/4.
  • Leather producers: Use for tough leather.

Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration.

(Price: $80.00)


42-E/B

T-handle electrode with 3/8" penetration to check moisture in stacks in or out of the kiln. Stickers must be at least 5/8". Also offered in and 4 1/2 ft. length as 42E/B/4.5.

(Price: $205.00; $245.00)


43-E

Clamp type for testing thin sheet stock. The sample tested is compressed between two smooth discs.

(Price: $295.00)


52-E/C

Cup type electrode used for lint or seed cotton.

(Price: $75.00)


55-E

Leaf type for measuring moisture content on a moving web or roll. Can be used with a portable unit or for stationary installation.

(Price: $320.00)


830 Series

Prods for testing standard and high density bales (requires H-4 Handle).

Available as:

  • 830-2 – 10” prod (Price: $55.00)
  • 830-3 – 18” prod (Price: $60.00)
  • 830-4 – 36” prod (Price: $70.00)
  • 830-5 – 12” for hops (Price: $70.00)

830-T/C

Used for modules, heavy duty steel, 36" T-handle.

(Price: $225.00)


831 Short Pin Prod

For testing hay in the windrow (requires H-4 Handle).

(Price: $40.00)


832

Long pin prod – for testing grain in bulk (requires H-4 Handle).

(Price: $55.00)


GB-1 Gypsum Sensor Blocks

The blocks are made of gypsum, cast around two concentric, stainless steel electrodes. They are manufactured under controlled conditions to obtain a maximum degree of uniformity and fast response to soil moisture changes. The GB-1 measures 7/8” dia. x 1 1/8” in height. It is the most widely used sensing unit, easy to install and especially suited for extensive sampling of soil at various depths.


H-4 Handle

Electrode handle that attaches to the built-in connector on the top of any moisture meter. Can be used with the 830 series prods, 831 short pin disc shaped prod, and 832 long pin disc shaped prod. This is useful for large or high density bales of hay or scrap paper. Two handed operation is recommended over using a prod that connects directly to the top of the meter (like our 1235 series) to minimize stress placed on the meter casing.

(Price: $65.00)

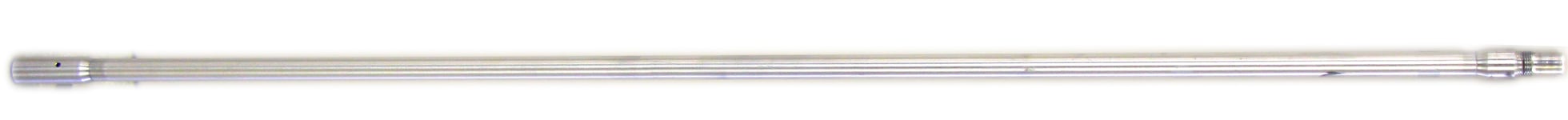

PE-22 PROBE EXTENSION

Used with TS-107 Sensor. Available in 3 ft. length.


SH-44 HANDLE

Used with TS-107 Sensor.

(Price: $95.00)


TS-102 SENSOR

Used for liquids, gases, ambient temperature. Stainless steel probe length 5". Delrin handle.

(Price: $100.00)


TS-107 SENSOR

Used for penetrable solids. Ideal for hay and grain. TS-107, (3 1/2" long) is made of aluminum and delrin parts with a stainless steel tip. Requires SH-44 handle.

(Price: $100.00)
