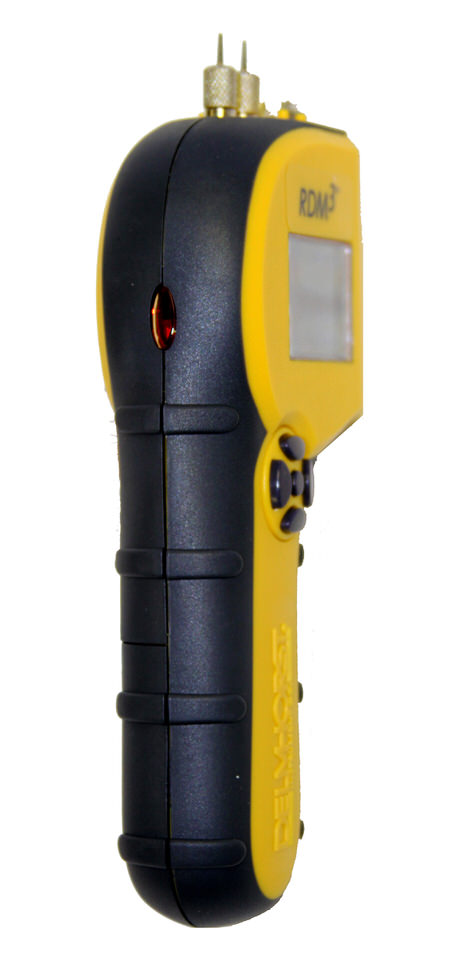

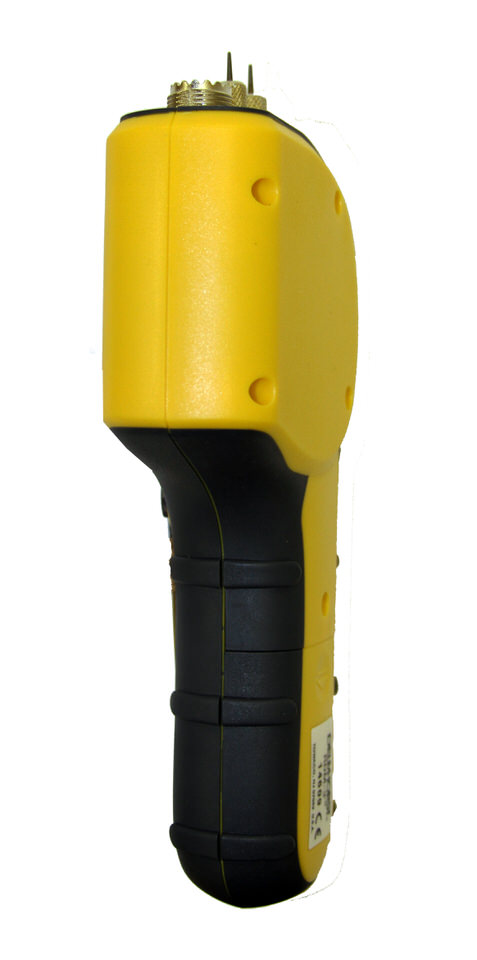

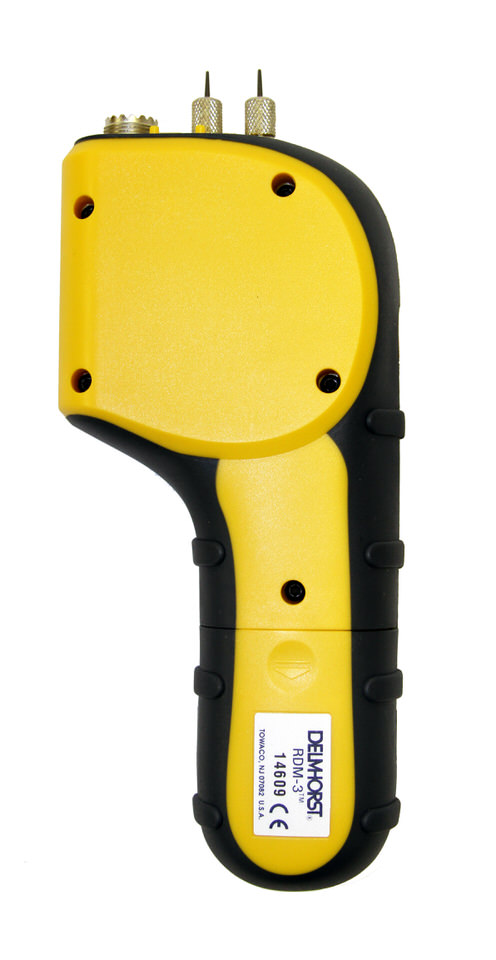

RDM-3

The RDM-3 is a handheld moisture meter packed with features, and is perfect for the lumber and woodworking industries. The RDM-3 is ideal for anyone who needs to collect and analyze key statistical information.

Where to Buy

Locate Your Dealer

Product Features

  • Bright, clear digital display.
  • 5%-60% wood scale.
  • 0.1% MC resolution.
  • Corrects for 69 individual wood species and temperature (°F and °C).

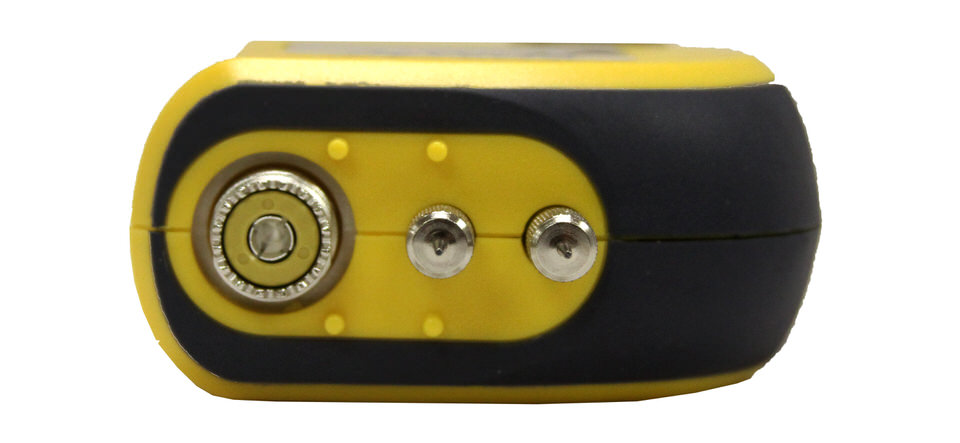

  • Integral contact pins mounted on top of meter provide 5/16” penetration.
  • Built-in connector accepts any Delmhorst electrode.
  • Audible, adjustable alarm alerts you when your pre-selected MC has been reached.
  • Auto-shutoff timer saves battery life.
  • Store up to 1400 readings with date and time stamp.
  • View stored readings on screen.
  • Organize readings by job for easy reference.
  • Optional software lets you download readings to your computer and generate Excel reports.
  • Operating Temperature -4°to158°F (-20° - 70°C).
  • Size: 8 ½” x 3 3/8” x 1 ¾”.
  • Weight: 11 oz.
  • Rugged construction ensures years of reliable use.
  • Sturdy plastic carrying case.
  • 9V battery.
  • 1-year warranty.

RDM-3 Packages Variations:

With Case: Includes meter, carrying case, and additional contact pins. Order as RDM-3W/CS. (Price: $535.00)

RDM-3/PKG: Includes meter, 26-ES electrode, extra contact pins for the meter, extra 496 pins for the 26-ES electrode, and carrying case. (Price: $685.00)

RDM-3 PLUS: Includes everything in the RDM-3/PKG, PLUS the PC/KIT software application program. This is the most complete package available and enables you to download stored readings via I/R to a PC or laptop. (Price: $840.00)

RDM-3 Accessories:


1849

An alternate to the 496 pin for the 26-ES, the 1849 is a 1 ½” insulated pin with 1/2" penetration. The 1849 is suitable for wood up to 2" thick.

Order as:

1849/24 (Price: $63.60)

1849/100 (Price: $265.00)


2497/A-100

Uninsulated pin and retainer with 5/16" penetration. Standard on all meters with built-in pins and the 2-E and 4-E electrodes. Used on wood up to 6/4 (1 ½”), concrete and gypsum.

2497/A-100/24 (Price: $48.00)


496

496 contact pins are insulated except at the tips, and measure 2" overall with 1 1/8" penetration. Standard on the 26-ES, and can be used to check wood up to 5" thick.

Order as:

496/24 (Price: $63.60)

496/100 (Price: $265.00)


608

The 608 insulated contact pins measure 4" overall, and penetrate 3 1/4". Standard on 21-E and 18-ES electrodes, and can be used on roofing, insulation, timber, poles, and EIFS. Also available in 7” length with 6” penetration as 608/001.

Order as:

608/4 (Price: $50.00)

608/001/4 (Price: $65.00)


632

Retainer used to hold contact pins in place. Used with #496, #1849, and #A-111 pins. Available in packs of 4 as 632/4.

Order as:

632/4 (Price: $12.00)


305RET-0021

Retainer used to hold contact pins in place. Used with #608 and #608/001. Available in packs of 4 as 305RET-0021/4.

305RET-0021/4 (Price: $12.00)


A-111

Another alternative to the 496, the A-111 is an uninsulated contact pin measures 1 7/16” and has 1/2" penetration. The A-111 is compatible with both the 26-ES and the 22-E, and its tapered point makes it easier to penetrate into hard surfaces. Can be used on wood up to 2" thick.

Order as:

A-111/24 (Price: $37.20)


MCS-1

Moisture content standards are great for verifying that your Delmhorst moisture meter is in calibration. The MCS-1 can be used on any meter with a wood scale. With two electrical resistance values (12% and 22%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy. The MCS-1 is also available with a letter of certification traceable to NIST.

(Price: $40.00)

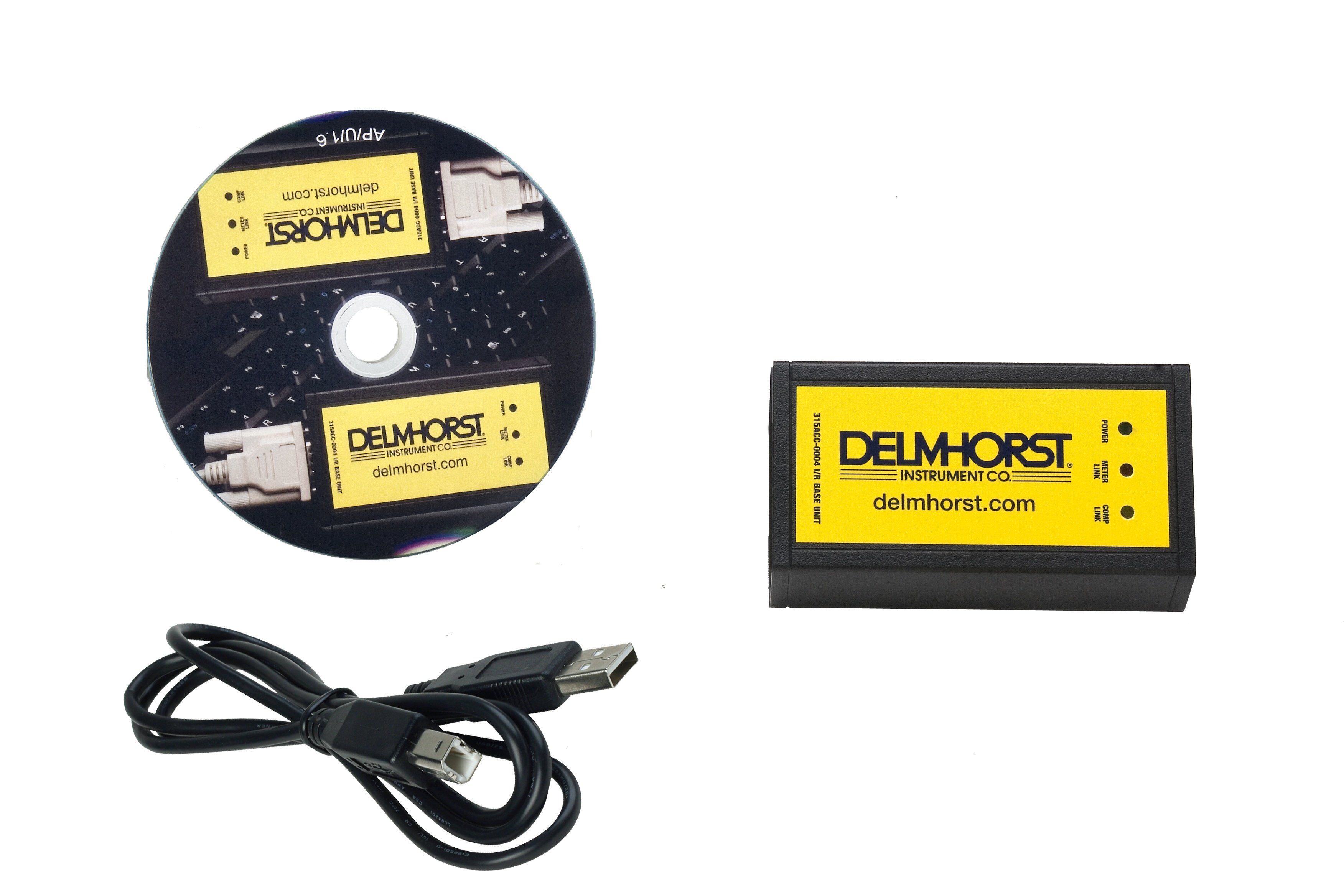

PC/KIT

Enables you to download stored readings from the meter to a PC via infrared linking. This software will enable you to:

  • Export job data to Excel.
  • Customize printing options.
  • View readings and stats in the application program.
  • Save and print individual or group job readings.
  • Customize job title.
  • View data in Fahrenheit or Celsius.
  • Append notes to each job.
  • Generate graphical histogram.

All these features are provided in a easy to use GUI interface, and are compatible with Windows 95/98/ME/2000/XP/Vista/7.

The PC/KIT is included in several of our moisture meter packages, or may be ordered separately. It can be used with the Moisture Check, Navigator Pro, RDM-3, RDM-3P, and Total Check moisture meters.

(Price: $170.00)

RDM-3 Electrodes:

Delmhorst offers a wide assortment of electrodes known throughout the industry for their durability. All Delmhorst electrodes fit any Delmhorst moisture meter. Below are electrodes that are typically used for this model:


15-E

Pin type, with two rows of four pins each, maximum penetration 1/8". Penetration can be adjusted according to stock thickness by means of gauge block. Used for veneer.

(Price: $115.00)

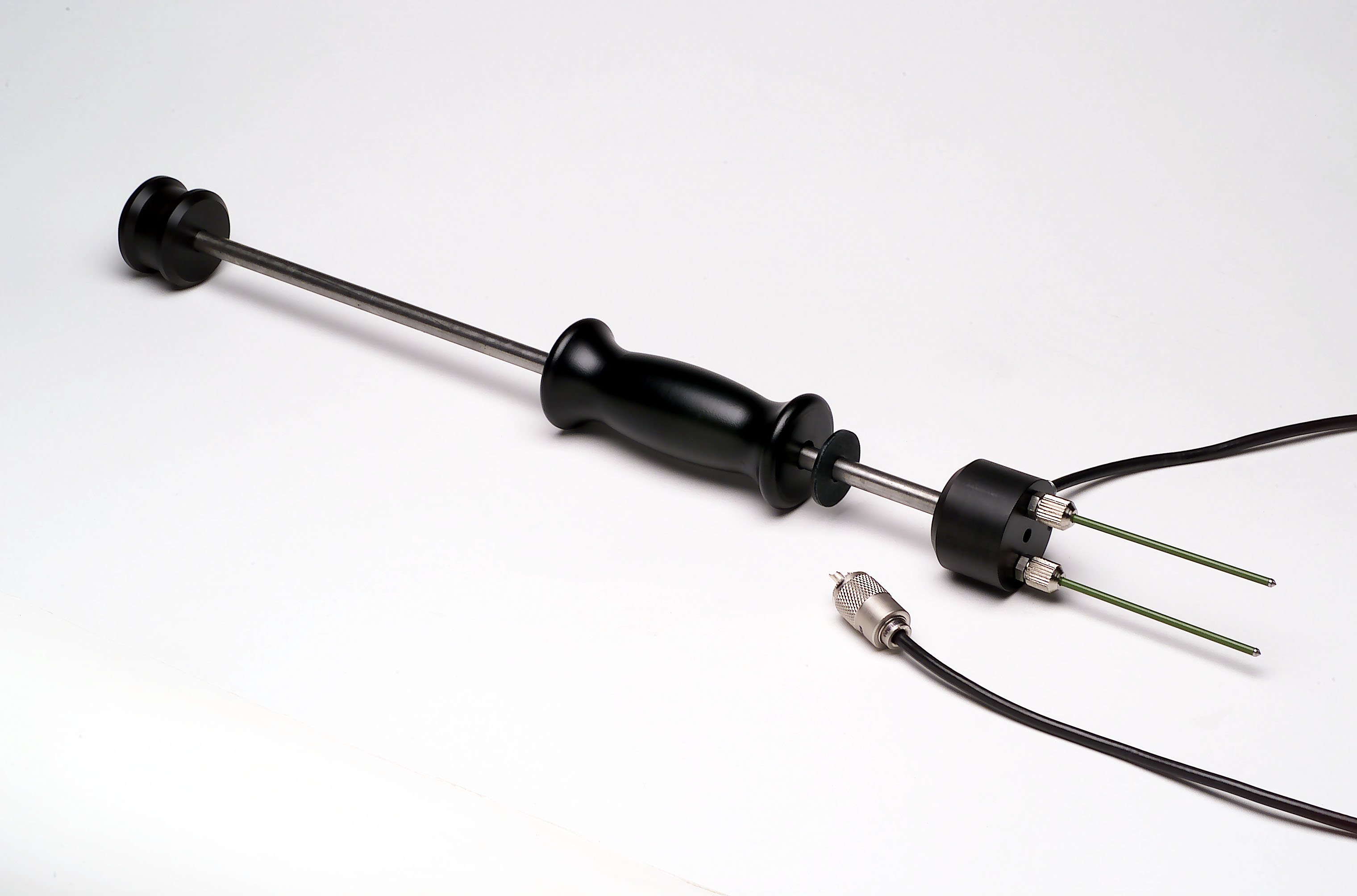

18-ES

Similar to 26-ES, the 18-ES has a 17" steel shaft. Comes with 608 insulated pins for 3 1/4" penetration. Ideal for timber, poles, and ties.

Also offered - 18-ED - with depth gauge to measure pin penetration.

18-ES: (Price: $140.00)

18-ED: (Price: $155.00)


22-E

Comes with A-111 uninsulated contact pins for 1 1/2" penetration. For use on plaster, masonry and wood. Will also accept 496, insulated pins; 1 1/16” penetration.

22-E is also available as the 22- ET with a tapped handle for hard to reach areas.

(Price: $80.00)


26-ES

The 496 contact pins that come with the 26-ES penetrate 1 1/8” and have insulated shanks so that only the tips are exposed. The pins make contact only at their uncoated tips and provide much more accurate readings of moisture content at various levels of penetration. This feature is useful for a variety of different applications:

  • Flooring installers: Penetrate through flooring to plywood sub-floor, or concrete.
  • Dry kiln operators: Identify moisture gradients which helps to identify the drying pattern.
  • Furniture manufacturers and craftsmen: Easily check high density hardwood that short pins are unable to penetrate.

Also available as the 26-ED, which includes gauge to measure pin penetration depth.

(Price: $130.00)


2-E

Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications:

  • Home inspector: use on wood joists and drywall.
  • Paper producer: use on curved surfaces such as cardboard and paper tubes.
  • Woodworker: use on timber, poles, and veneer/

2-E is also available as the 2- ET with a tapped handle for hard to reach areas.

Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration.

(Price: $75.00)

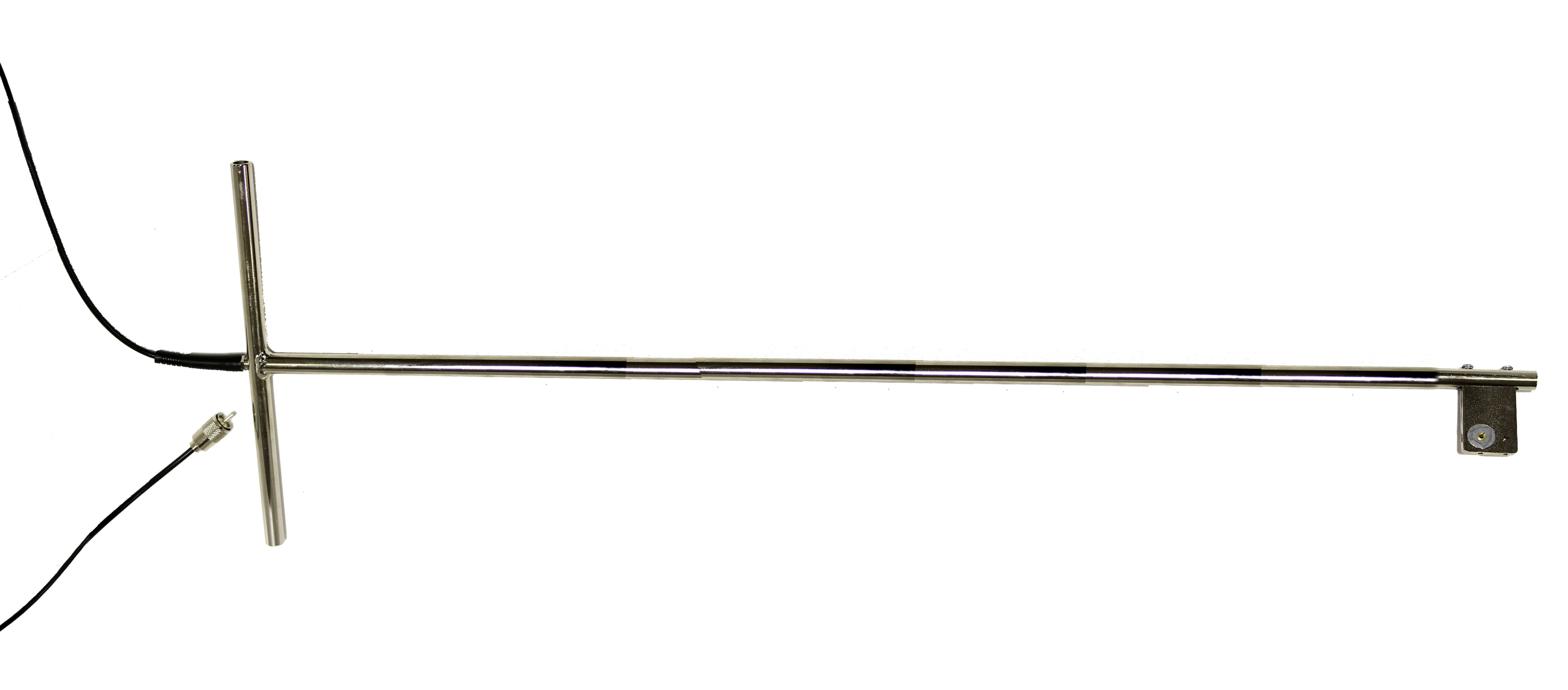

42-E/B

T-handle electrode with 3/8" penetration to check moisture in stacks in or out of the kiln. Stickers must be at least 5/8". Also offered in and 4 1/2 ft. length as 42E/B/4.5.

42-EB: (Price: $205.00)

42-EB/4-5: (Price: $245.00)


4-E

Comes with 4 uninsulated 2497/A-100 contact pins for 5/16" penetration. Useful for:

  • Dry-kiln operators: Use on kiln-dried boards up to 2" and on air-dried boards up to 5/4.
  • Leather producers: Use for tough leather.

Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration.

(Price: $80.00)
